COPPER SHEET

COPPER SHEET Specification

Product Form
Flat Sheet

Diameter
Not applicable (sheet form)

Coating Type
Uncoated

Hardness
45-65 HRB

Recyclable
Yes

Corrosion Resistant
Yes, excellent resistance

Material Composition %
99.9% Copper

Tensile Strength
210-250 MPa

Heat Resistance
Yes

Size
Standard and custom sizes available

Product Name
Copper Sheet

Steel Type
Not applicable (Non-ferrous metal)

Steel Product Type
Sheet

Grade
C11000, C12200, ETP Copper, DHP Copper

Thickness
0.3 mm - 10 mm

Shape
Rectangular Sheet

Steel Standard
ASTM B152, JIS H3100

Surface
Smooth, mill finish

Composition
Minimum 99.9% Cu

Application
Electrical engineering, roofing, construction, arts & crafts, industrial fabrication

Dimension (L*W*H)
Customizable, typical sheets: 1000mm x 2000mm x 1mm (L*W*H)

Weight
Varies by sheet size and thickness

Color
Reddish Brown

Material Grade
Commercial Grade

Finish Type
Mill Finish

Usage
Electrical, architectural, industrial, decorative, DIY

Machinability
Excellent

Packaging
Wooden pallet, wrapped for protection

Lead Time
7-15 days after order

Edge Type
Mill or slit edges

Width Tolerance
1 mm

Melting Point
1083C

Density
8.96 g/cm3

MOQ
300 kg

Electrical Conductivity
Above 97% IACS

Elongation
30-40%

COPPER SHEET Trade Information

Minimum Order Quantity
10 Kilograms

Supply Ability
500 Kilograms Per Month

Delivery Time
10 Days

About COPPER SHEET

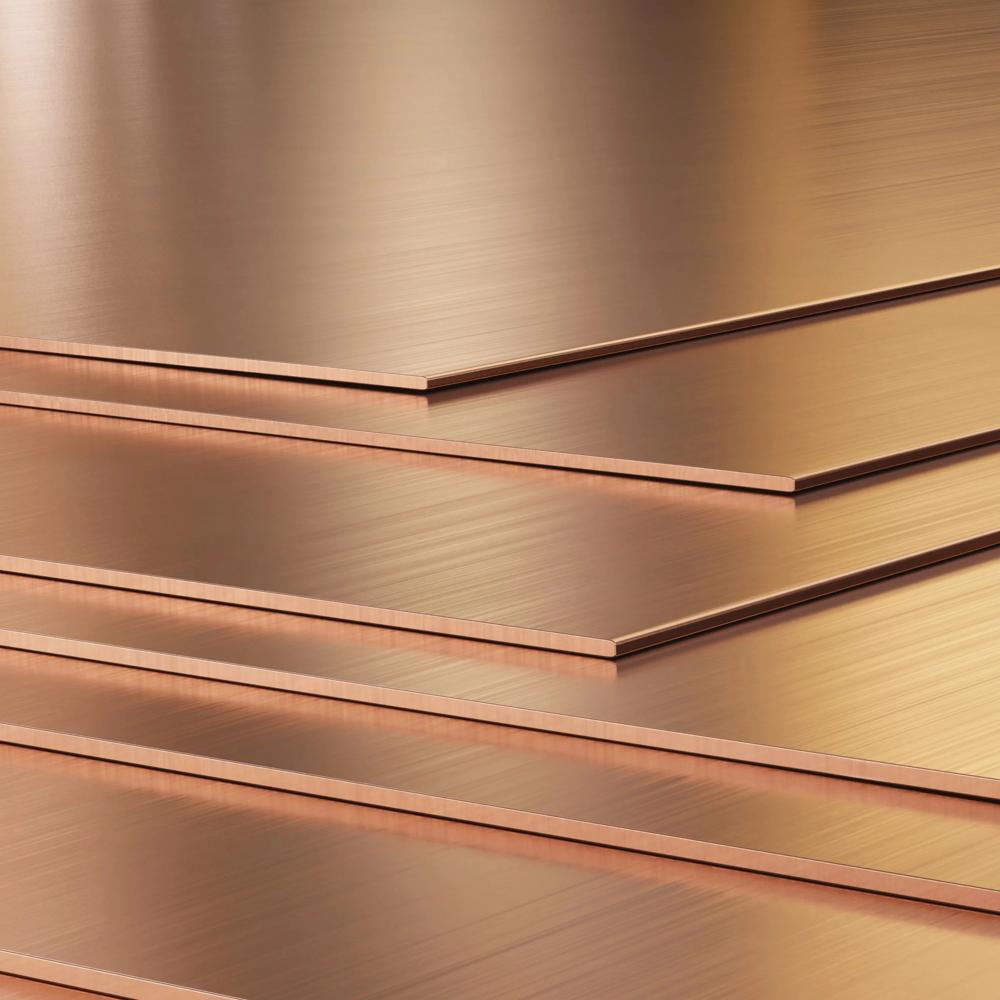

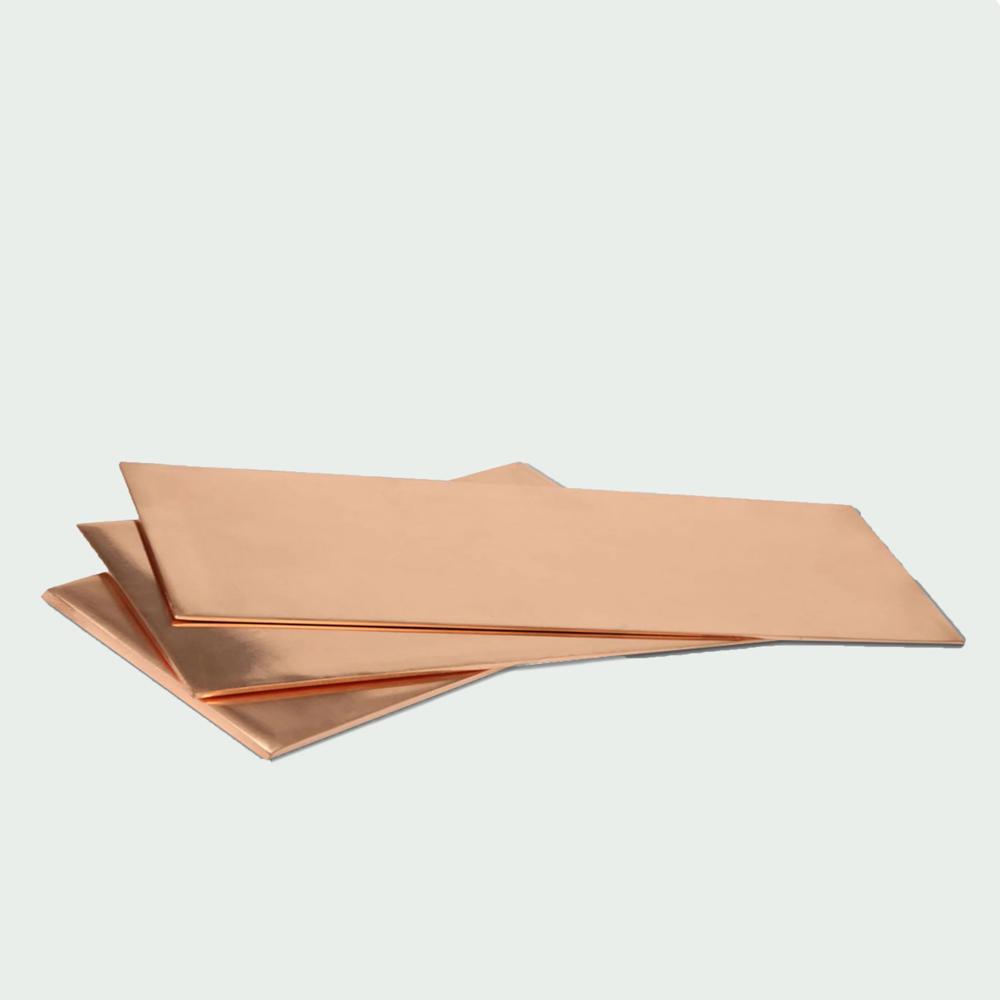

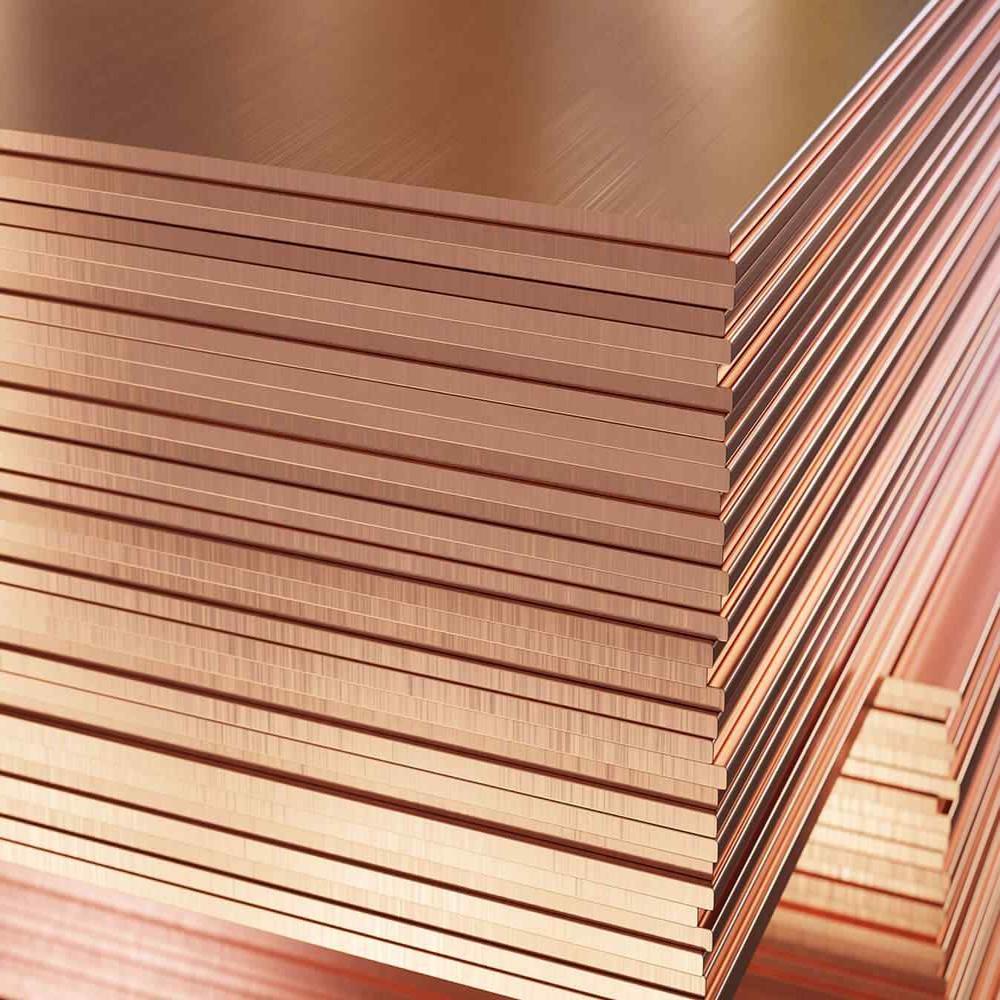

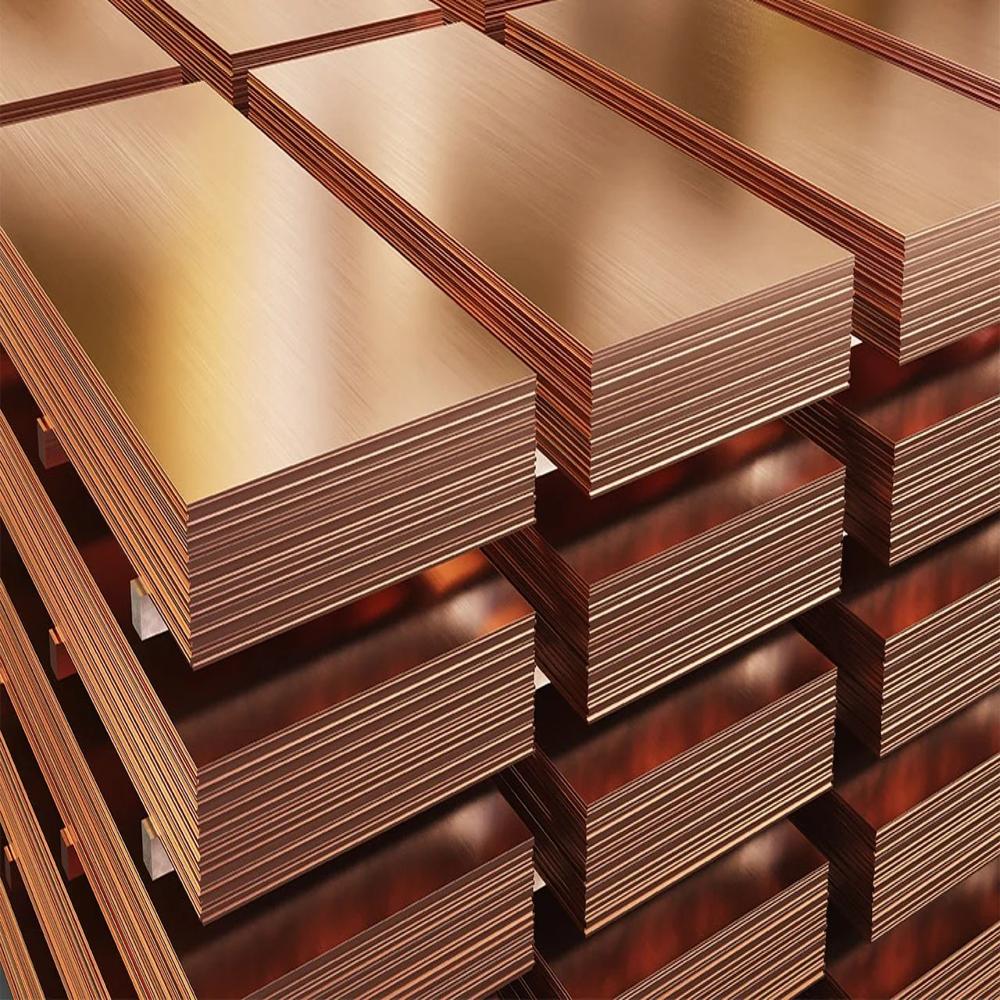

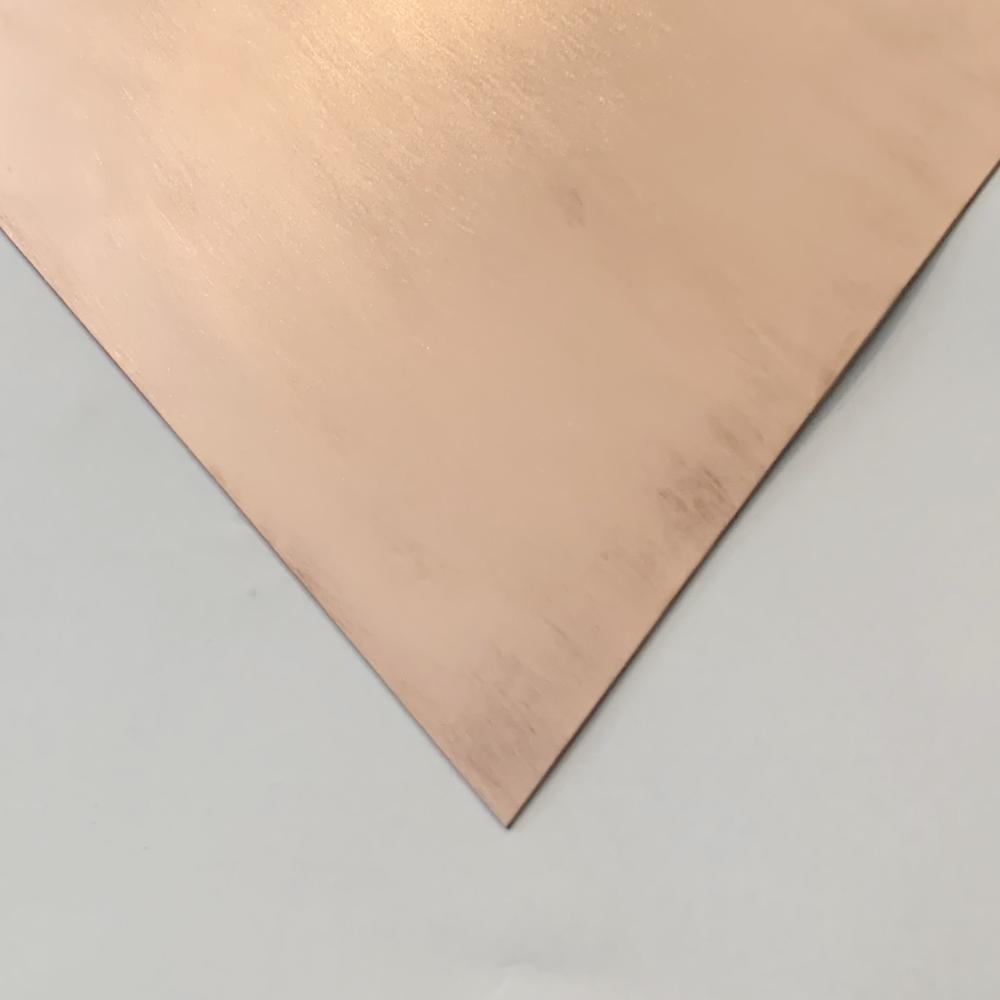

Copper sheets are highly malleable, ductile, and corrosion-resistant metal sheets, typically 99.9% pure, known for exceptional electrical and thermal conductivity. Ranging from thin foils (36 gauge) to thick plates, they are used for electrical components, roofing, architectural cladding, and crafting. They are often pinkish-orange, oxidizing over time.

Conductivity: Excellent conductor of electricity and heat, making it ideal for electrical applications.
Malleability: Highly pliable, easy to bend, form, shape, and cut (even with scissors in thinner gauges).
Corrosion Resistance: Forms a natural, protective patina upon oxidation, providing long-term durability in outdoor applications.
Appearance: Shiny reddish-orange, but can develop a green or dark brown patina over time if not treated.
Strength: Generally soft but possesses sufficient mechanical strength for structural, architectural, and industrial use.
Antimicrobial: Naturally inhibits microbial growth on its surface.

Exceptional Conductivity and Purity

With electrical conductivity exceeding 97% IACS and composition of at least 99.9% copper, this sheet delivers superior performance in demanding electrical and industrial applications. Its high purity ensures reliable results in both energy transmission and fabrication.

Versatile Applications and Customization

Copper Sheet is utilized across a wide range of industries, including electrical engineering, construction, roofing, arts, and industrial fabrication. Custom dimensions, thicknesses (0.3 mm-10 mm), and finishes are available to suit project-specific requirements.

Durable and Easy to Work With

Thanks to its excellent machinability, elongation (30-40%), and smooth mill finish, this copper sheet is easy to cut and shape to different designs. The product's corrosion resistance and high thermal stability ensure long-term durability in diverse environments.

FAQ's of COPPER SHEET:

Q: How can I order copper sheets in custom sizes or thicknesses?

A: You can request copper sheets in standard or customized dimensions and thicknesses (0.3 mm to 10 mm). Provide your requirements to the distributor or manufacturer, and they will supply sheets tailored to your specifications.

Q: What benefits does the high conductivity (above 97% IACS) offer?

A: The exceptional electrical conductivity ensures minimal power loss, making the copper sheet ideal for electrical and electronic applications where efficient current transfer is crucial.

Q: What industries commonly use these copper sheets?

A: These sheets are widely used in electrical engineering, construction, roofing, architectural projects, industrial fabrication, arts and crafts, and DIY projects due to their versatility and physical properties.

Q: When can I expect delivery after placing an order?

A: Typical lead time is 7 to 15 days after order confirmation, depending on order quantity and customization requirements.

Q: Where are the copper sheets manufactured and supplied from?

A: Copper Sheets are manufactured, distributed, and supplied by reputable companies and traders in India, adhering to international standards like ASTM B152 and JIS H3100.

Q: How does the packaging ensure protection during transit?

A: Each copper sheet is securely wrapped and placed on wooden pallets for safe transport, preventing physical damage and preserving surface quality during shipping and handling.
